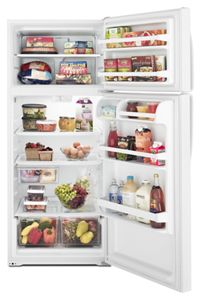

17.6 cu. ft. Top-Freezer Refrigerator with Spillsaver™ Shelves

Save Energy

• Refrigerate your food for less. This Amana® top-freezer refrigerator cools your food more efficiently, so you save money and energy. Compared to average annual energy use of a pre-2000 refrigerator, average use, 12 year life.

17.5 cu. ft. Capacity

• Use only what you need. The 17.5 cu. ft. capacity of this Amana® top mount refrigerator provides the food storage that's right for you, while ensuring energy isn't wasted.

Spillsaver™ Glass Shelves

• Save yourself the trouble. These shelves help keep the mess contained and can be adjusted to meet your storage needs.

Optional Automatic Icemaker Kit

• Forget the ice trays and enjoy cold, refreshing beverages when you install this optional ice maker.

Up-Front Temperature Control System

• Controls are located front and center so you can change temps without having to reach over bottles, jars…or the mystery that may be lurking at the back of the fridge.

Gallon Door Storage

• Now there's a perfect place for those gallons of milk, 2-liter bottles of soda and containers of juice, or whatever quenches your thirst.

Garden Fresh™ Crispers

• This humidity-controlled drawer helps keep fruits and veggies fresh for longer, and is perfect for hand-picked and organic vegetables.

Deli Drawer

• Keep track of your deli meat and cheese by storing it in this clear drawer.

Dairy Center

• Easily access items like butter, cream cheese and yogurt.

Accessory Relationships
Accessory Relationships	Yes

AHAM Volumes And Shelf Area|Freezer Volume (Cu Ft)
AHAM Volumes And Shelf Area|Freezer Volume (Cu Ft)	4.07

AHAM Volumes And Shelf Area|Refrigerator Volume (Cu Ft)
AHAM Volumes And Shelf Area|Refrigerator Volume (Cu Ft)	13.52

Certifications|CEE Tier
Certifications|CEE Tier	Not Rated

Certifications|Energy Rating (kWh/year)
Certifications|Energy Rating (kWh/year)	470

Certifications|Prop 65
Certifications|Prop 65	Standard

Certifications|UL
Certifications|UL	Yes

Configuration|Door Style Configuration
Configuration|Door Style Configuration	Top Mount

Configuration|Installation Configuration
Configuration|Installation Configuration	Freestanding

Configuration|Refrigeration Configuration
Configuration|Refrigeration Configuration	Refrigerator

Controls|Automatic Defrost
Controls|Automatic Defrost	Yes

Controls|Control Location
Controls|Control Location	Interior

Controls|Control Type
Controls|Control Type	Dials

Description|Refrigerator Type
Description|Refrigerator Type	Top Freezer

Dimensions
Capacity (Cu Ft)	17.60 in
Cabinet Width (in)	28 in
Carton Depth	34 in
Carton Height	69 in
Carton Width	29 1/2 in
Cutout Depth (in)	31 7/8 in
Cutout Height (in)	70 3/8 in
Cutout Width (in)	30 1/2 in
Depth	30 7/8 in
Height	67 7/8 in
Width	28 in
Depth Closed Excluding Handles	30 7/8 in
Depth Closed Including Handles	32 7/8 in
Depth Excluding Doors	27 3/4 in
Depth With Door Open 90 Degree	57 in
Gross Weight	175 in
Height To Top Of Cabinet	67 3/8 in
Height To Top Of Door Hinge	67 7/8 in

Dimensions|Cabinet Width (IN,inches)
Dimensions|Cabinet Width (IN,inches)	28.0000

Dimensions|Capacity(FT3,cubic feet)
Dimensions|Capacity(FT3,cubic feet)	17.60

Dimensions|Carton Depth(IN,inches)
Dimensions|Carton Depth(IN,inches)	34.0000

Dimensions|Carton Height(IN,inches)
Dimensions|Carton Height(IN,inches)	69.0000

Dimensions|Carton Width(IN,inches)
Dimensions|Carton Width(IN,inches)	29.5000

Dimensions|Cutout Depth(IN,inches)
Dimensions|Cutout Depth(IN,inches)	31.8750

Dimensions|Cutout Height Min(IN,inches)
Dimensions|Cutout Height Min(IN,inches)	70.3750

Dimensions|Cutout Height(IN,inches)
Dimensions|Cutout Height(IN,inches)	70.3750

Dimensions|Cutout Width(IN,inches)
Dimensions|Cutout Width(IN,inches)	30.5000

Dimensions|Depth Closed Excluding Handles(IN,inches)
Dimensions|Depth Closed Excluding Handles(IN,inches)	30.8750

Dimensions|Depth Closed Including Handles(IN,inches)
Dimensions|Depth Closed Including Handles(IN,inches)	32.8750

Dimensions|Depth Excluding Doors(IN,inches)
Dimensions|Depth Excluding Doors(IN,inches)	27.7500

Dimensions|Depth With Door Open 90 Degree(IN,inches)
Dimensions|Depth With Door Open 90 Degree(IN,inches)	57.0000

Dimensions|Depth(IN,inches)
Dimensions|Depth(IN,inches)	30.8750

Dimensions|Gross Weight(LB,pounds)
Dimensions|Gross Weight(LB,pounds)	175

Dimensions|Height To Top Of Cabinet(IN,inches)
Dimensions|Height To Top Of Cabinet(IN,inches)	67.3750

Dimensions|Height To Top Of Door Hinge(IN,inches)
Dimensions|Height To Top Of Door Hinge(IN,inches)	67.8750

Dimensions|Height(IN,inches)
Dimensions|Height(IN,inches)	67.8750

Dimensions|Width(IN,inches)
Dimensions|Width(IN,inches)	28.0000

Dispenser|Types of Ice
Dispenser|Types of Ice	No

Electrical|Amps
Electrical|Amps	15

Electrical|Hz
Electrical|Hz	60

Electrical|Volts
Electrical|Volts	120

Exterior|Cabinet Color
Exterior|Cabinet Color	White

Exterior|Cabinet Finish
Exterior|Cabinet Finish	Textured

Exterior|Door Color
Exterior|Door Color	White

Exterior|Door Finish
Exterior|Door Finish	Textured

Exterior|Door Opening
Exterior|Door Opening	Right

Exterior|Door Style
Exterior|Door Style	Flat

Exterior|Handle Color
Exterior|Handle Color	White

Exterior|Handle Material
Exterior|Handle Material	Plastic

Exterior|Hidden Hinge
Exterior|Hidden Hinge	No

Exterior|Reversible Door
Exterior|Reversible Door	Yes

Filters|Fresh Flow Air Filter Included
Filters|Fresh Flow Air Filter Included	No

Filters|Water Filter Location
Filters|Water Filter Location	N/A

Freezer Compartment|Freezer Drawer/Basket
Freezer Compartment|Freezer Drawer/Basket	None

Freezer Compartment|Freezer Number of Shelves
Freezer Compartment|Freezer Number of Shelves	1

General
Freezer Compartment|Freezer Door Bins	2 Fixed Full-Width

General
Freezer Compartment|Freezer Lighting	None

General
Freezer Compartment|Freezer Shelves	1 Adjustable Half Width Wire

General
Refrigerator Compartment|Refrigerator Lighting	Incandescent

Humidity-Controlled Crispers
Humidity-Controlled Crispers	2 Half-Width

Icemaker|Icemaker
Icemaker|Icemaker	Optional

Icemaker|Icemaker Location
Icemaker|Icemaker Location	Freezer

Refrigerator Compartment|Conventional Shelves
Refrigerator Compartment|Conventional Shelves	No

Refrigerator Compartment|Door Bins
Refrigerator Compartment|Door Bins	1 Dairy,1 Fixed Partial-Width,2 Fixed Full-Width

Refrigerator Compartment|Non Climate Control Drawers
Refrigerator Compartment|Non Climate Control Drawers	None

Refrigerator Compartment|Number of Interior Shelves
Refrigerator Compartment|Number of Interior Shelves	3

Refrigerator Compartment|Spill-Proof Glass Shelves
Refrigerator Compartment|Spill-Proof Glass Shelves	1 Fixed Full Width,2 Adjustable Full Width

Refrigerator Compartment|Temperature-Controlled Drawers
Refrigerator Compartment|Temperature-Controlled Drawers	No

Width Doors Open 90 Degrees
Width Doors Open 90 Degrees	57.000
