7.4 cu. ft. Top Load Gas Dryer with Intuitive Controls
Model # WGD5100HC

Product Details
AccuDry™ sensor drying technology
- Two built-in sensors measure moisture and temperature levels to help prevent overdrying and automatically stop the cycle when the load is dry.
- Let the dryer guide you to the right cycle combinations or customize up to 35 of your own to get the right type of fabric care for whatever you’re drying.
- Help keep wrinkles from setting into clean, dry fabrics with the Wrinkle Shield™ option. It keeps clothes tumbling for up to 150 minutes after the cycle ends or until you open the door.
- Use less energy while still getting great drying performance with the EcoBoost™ option that uses less heat and extended cycle times for greater energy efficiency.
- The Sanitize cycle provides care for your clothes in the dryer while eliminating 99.9% of common household bacteria.
- Dry a small load quickly or customize settings to add more time. Plus, you can choose to remember your settings for your next load of laundry.

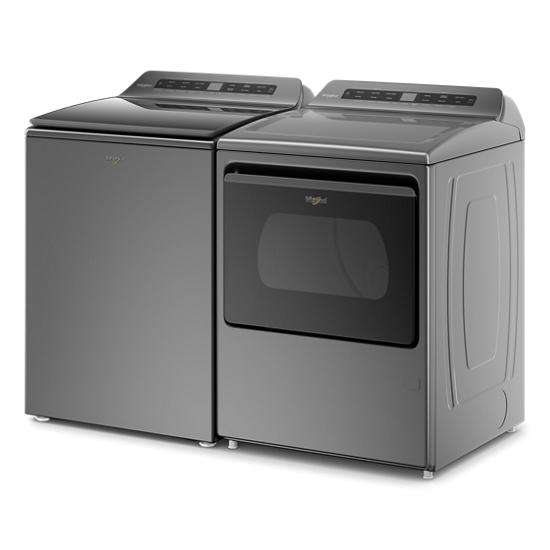

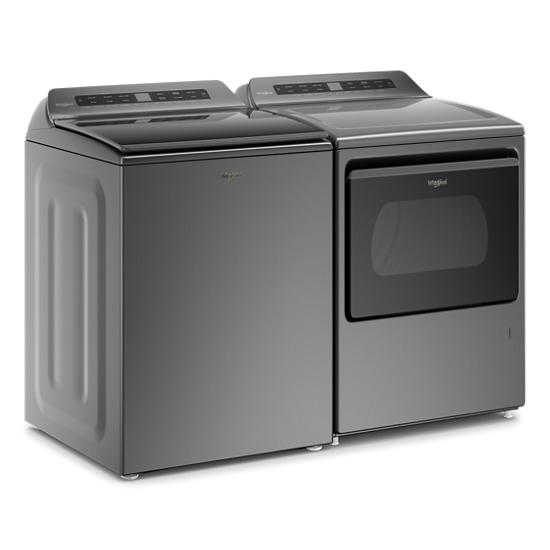

- With a 7.4 cu. ft. capacity dryer drum, there’s plenty of room to easily handle the large loads you washed in the matching top load washer.

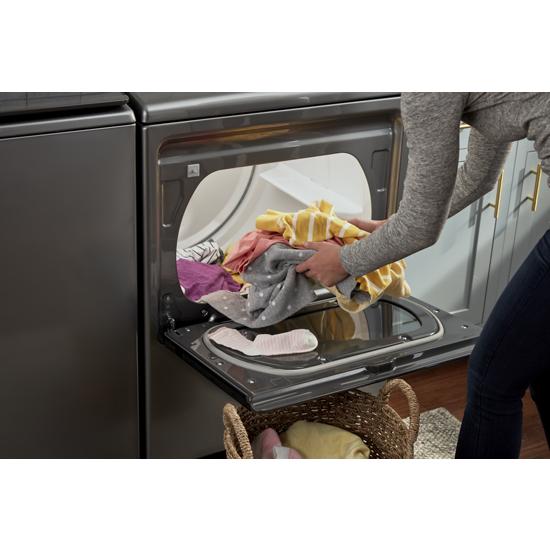

- Easily transfer loads from the washer to the dryer and from the dryer to the laundry basket without worrying about clean clothes falling on the floor with this wide-opening door.
- Whirlpool Corporation started in 1911 as a small company in Benton Harbor, Michigan. Today we are a global home appliance business selling products around the world. We are proud of our American heritage and ingenuity that have driven innovation for over 100 years.
Accessory Relationships | |
Accessory Relationships | Yes |
Certifications|ADA Compliant | |
Certifications|ADA Compliant | No |
Certifications|Emerging Technology Award | |
Certifications|Emerging Technology Award | No |
Certifications|Prop 65 | |
Certifications|Prop 65 | Standard |
Certifications|UL | |
Certifications|UL | Yes |

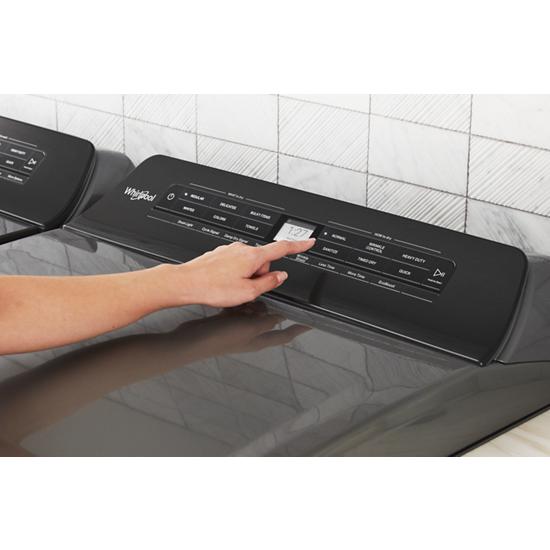

Controls|Control Location | |
Controls|Control Location | Rear Console |
Controls|Control Type | |
Controls|Control Type | Tap Touch |
Controls|Electronic Display Type | |
Controls|Electronic Display Type | 2.4in LCD |
Controls|End of Cycle Signal | |
Controls|End of Cycle Signal | Yes |
Controls|Feedback-Status Indicators | |
Controls|Feedback-Status Indicators | Cooling Down,Drying,Drying Complete,Sensing,Wrinkle Shield™ |
Cycles|Drying Cycles Selections | |
Cycles|Drying Cycles Selections | Bulky Items,Colors,Delicates,Heavy Duty,Normal,Quick Dry,Regular,Sanitize,Timed Dry,Towels,Whites,Wrinkle Control |
Cycles|Number of Dryer Cycles | |
Cycles|Number of Dryer Cycles | 35 |
Description|Fuel Type | |
Description|Fuel Type | Gas |
Details|4 Way Venting | |
Details|4 Way Venting | Yes |
Details|Drum Material | |
Details|Drum Material | Powder Coat |
Details|Eco Monitor/Efficiency Monitor | |
Details|Eco Monitor/Efficiency Monitor | No |
Details|Heating Burner (BTU) | |
Details|Heating Burner (BTU) | 20000 |
Details|Hoses Included | |
Details|Hoses Included | No |
Details|Interior Light | |
Details|Interior Light | Incandescent |
Details|Lint Screen Location | |
Details|Lint Screen Location | Front |
Details|Maytag Commercial Components | |
Details|Maytag Commercial Components | No |
Details|Quad Baffles | |
Details|Quad Baffles | No |
Details|Steam Hose Y Connector | |
Details|Steam Hose Y Connector | No |
Dimensions | |
Carton Depth | 31 5/16 in |
Carton Height | 45 in |
Carton Width | 28 11/16 in |
Gross Weight | 137 in |
Net Weight | 119.6 in |
Dimensions|Capacity(FT3,cubic feet) | |
Dimensions|Capacity(FT3,cubic feet) | 7.40 |
Dimensions|Carton Depth(IN,inches) | |
Dimensions|Carton Depth(IN,inches) | 31.3125 |
Dimensions|Carton Height(IN,inches) | |
Dimensions|Carton Height(IN,inches) | 45.0000 |
Dimensions|Carton Width(IN,inches) | |
Dimensions|Carton Width(IN,inches) | 28.6875 |
Dimensions|Depth With Door Open 90 Degree(IN,inches) | |
Dimensions|Depth With Door Open 90 Degree(IN,inches) | 45.8750 |
Dimensions|Depth(IN,inches) | |
Dimensions|Depth(IN,inches) | 29.8750 |
Dimensions|Door Opening Height(IN,inches) | |
Dimensions|Door Opening Height(IN,inches) | 40.88 |
Dimensions|Door Opening Width(IN,inches) | |
Dimensions|Door Opening Width(IN,inches) | 27.00 |
Dimensions|Gross Weight(LB,pounds) | |
Dimensions|Gross Weight(LB,pounds) | 137 |
Dimensions|Height To Top Of Cabinet(IN,inches) | |
Dimensions|Height To Top Of Cabinet(IN,inches) | 37.8750 |
Dimensions|Height(IN,inches) | |
Dimensions|Height(IN,inches) | 40.8750 |
Dimensions|Maximum Height(IN,inches) | |
Dimensions|Maximum Height(IN,inches) | 40.8750 |
Dimensions|Net Weight(LB,pounds) | |
Dimensions|Net Weight(LB,pounds) | 120 |
Dimensions|Width(IN,inches) | |
Dimensions|Width(IN,inches) | 27.0000 |
Dryer Temperature Selections | |
Dryer Temperature Selections | High,Low,Medium,Medium High,Air Only |
Exterior|Door Opening | |
Exterior|Door Opening | Drop Down |
Exterior|Door Style | |
Exterior|Door Style | Hamper |
Exterior|Reversible Door | |
Exterior|Reversible Door | No |
Exterior|Window | |
Exterior|Window | Yes |
Features|Automatic Dry Control | |
Features|Automatic Dry Control | Yes |
Features|Cycle Time Remaining | |
Features|Cycle Time Remaining | Yes |
Features|EcoBoost™/Energy Saver | |
Features|EcoBoost™/Energy Saver | Yes |
Features|Lint Filter Indicator | |
Features|Lint Filter Indicator | Yes |
Features|LP Convertible | |
Features|LP Convertible | Yes |
Features|Moisture Sensor | |
Features|Moisture Sensor | Yes |
Features|Pedestal Options | |
Features|Pedestal Options | No |
Features|Secondary Lint Filter | |
Features|Secondary Lint Filter | No |
Features|Sound Package | |
Features|Sound Package | No |
Features|Stackable | |
Features|Stackable | No |
Installation Considerations|Flat Back | |
Installation Considerations|Flat Back | No |
Installation Considerations|Long Vent | |
Installation Considerations|Long Vent | No |
Installation Considerations|Maximum Vent Length (ft.) | |
Installation Considerations|Maximum Vent Length (ft.) | 64 |
Installation Considerations|Venting Direction | |
Installation Considerations|Venting Direction | Left, Right, Bottom, Rear |
Modifiers|Number of Dryness Levels | |
Modifiers|Number of Dryness Levels | 3 |
Modifiers|Selection of Drying Levels | |
Modifiers|Selection of Drying Levels | More,Less,Normal |
Number of Temperatures | |
Number of Temperatures | 5 |
Options|Dryer Option Selections | |
Options|Dryer Option Selections | Cycle Signal,Damp Dry,Eco Boost™,Wrinkle Shield™ |
Options|Number of Dryer Options | |
Options|Number of Dryer Options | 4 |
